跟蹤傳感器 - 3D Guidance driveBAY

更新：2020/6/1 點擊：

品牌： Ascension
型號（hào）： 3D Guidance driveBAY

產品介（jiè）紹

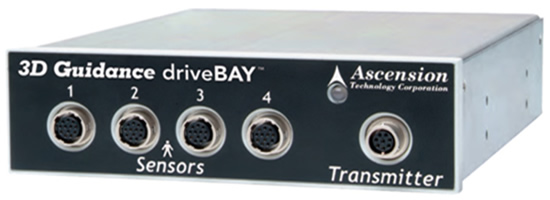

跟蹤器The driveBAY is the latest addition to the Ascension 3D Guidance family of ultra-fast trackers of small magnetic sensors. Users can select update rates as high as 420 times a second for each of four miniaturised sensors. The module fits into your PC's drive bay.

Fast, dynamic tracking - as many as 420 updates per second
Miniaturised passive sensors - outputs immune to "power-line" noise sources
Compact packaging - electronics conveniently fit into drive bay of your PC
All attitude tracking - no inertial drift or optical interference
High metal immunity - no distortion from non-magnetic metals

Components:

Electronics unit
DC magnetic field transmitter
8 mm, 2.0 mm, and 1.5 mm sensors (outer diameters)

New Features:

Compact transmitter: light enough to mount on body or head
Sleek Desktop Electronics Unit with Internal Power Module (No External Power Supply)
Mix and Match Miniaturized Sensors

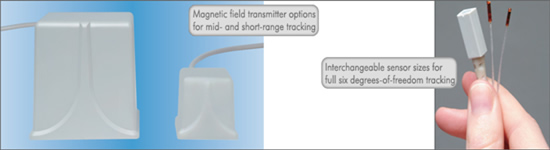

Transmitter Options:

Mid- Range Transmitter		20-61cm X 15-30 cm Y, Z coverage	Set-Up & Use: 9.6 cm (3.8 inch) cube that generates pulsed DC magnetic fields for high accuracy tracking over medium ranges.
Short-Range Transmitter		20-36 cm X 8-15 cm Y, Z coverage	Set-Up & Use: 6.3 cm (2.5 inch) transmitter that weighs just 230 grams. It generates pulsed DC magnetic fields for high accuracy tracking in short range applications.

Components in Default Unit:

(1) 3D Guidance driveBAY Electronics Module in half Height PC Drive Bay Enclosure
(1) 3D Guidance Mid-Range OR Short-Range (Air Core) Transmitter
(1-4) Sensors (Model 800, Model 180, or Model 130)
(1) USB Interface Cable
Installation & Operations Guide and Interface Software Module (Including winBird) on CDROM
Quick Set-up Guide (Paper Copy)
